IM系统简介
IM（Instant Messaging，即时通讯）又叫做实时通信

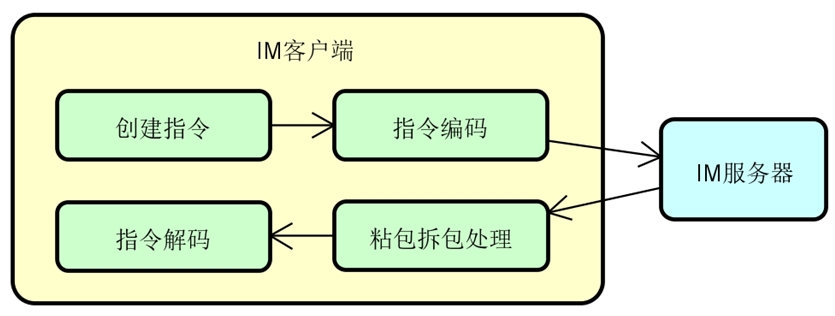

IM和Netty - 客户端实现逻辑

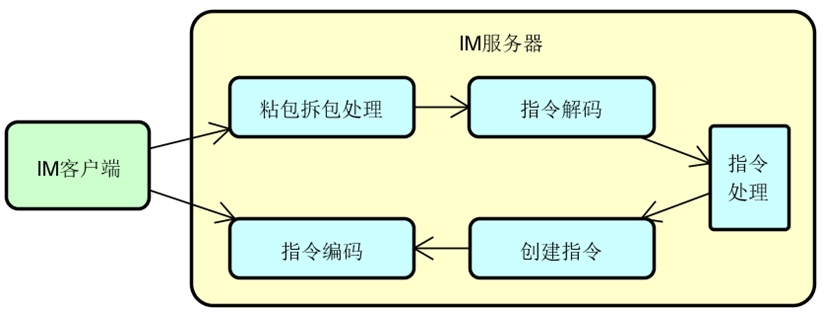

IM和Netty - 服务端实现逻辑
Pipeline与ChannelHandler

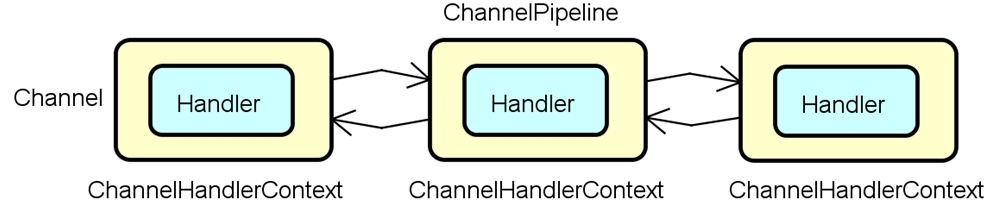

Netty中的管道-过滤器
Channel+ChannelPipeline+ChannelHandlerContext

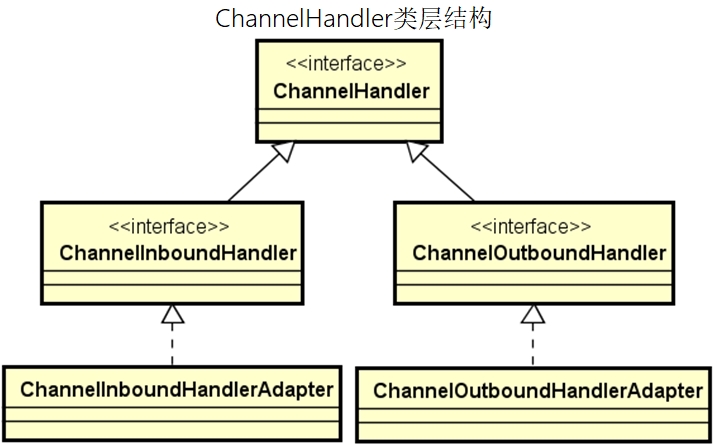

ChannelHandler
Netty内置ChannelHandlerAdapter
MessageToByteEncoder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
| public abstract class MessageToByteEncoder<I> extends ChannelOutboundHandlerAdapter {
protected abstract void encode(ChannelHandlerContext ctx, I msg, ByteBuf byteBuf) throws Exception;
}
public class PacketEncoder extends MessageToByteEncoder<MyMessage> {
@Override
protected void encode(ChannelHandlerContext ctx, MyMessage message, ByteBuf byteBuf) throws Exception {
//完成自定义编码
ByteBuf byteBuf = ...
}
}
|
ByteToMessageDecoder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| public abstract class ByteToMessageDecoder extends ChannelInboundHandlerAdapter {
protected abstract void decode(ChannelHandlerContext ctx, ByteBuf in, List<Object> out) throws Exception;
}
public class PacketDecoder extends ByteToMessageDecoder {
@Override
protected void decode(ChannelHandlerContext channelHandlerContext, ByteBuf byteBuf, List list) throws Exception {
//完成自定义解码
MyMessage message = ...;
list.add(message);
}
}
|
SimpleChannelInboundHandler
1
2
3
4
5
6
7
8
9
10
11
12
| public abstract class SimpleChannelInboundHandler<I> extends ChannelInboundHandlerAdapter {
protected abstract void channelRead0(ChannelHandlerContext ctx, I msg) throws Exception;
}
public class LoginResponseHandler extends SimpleChannelInboundHandler<MyMessage> {
@Override
protected void channelRead0(ChannelHandlerContext channelHandlerContext, MyMessage message) throws Exception {
//针对MyMessage处理登录逻辑
}
}
|
AuthenticationHandler
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
| public class AuthenticationHandler extends ChannelInboundHandlerAdapter {
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
//如果认证通过则继续执行，否则直接断开连接
}
@Override
public void handlerRemoved(ChannelHandlerContext ctx) throws Exception {
//打印日志
}
@Override
public void channelInactive(ChannelHandlerContext ctx) throws Exception {
//执行下线
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
//异常时断开连接
}
}
|
IM单聊的原理与实现

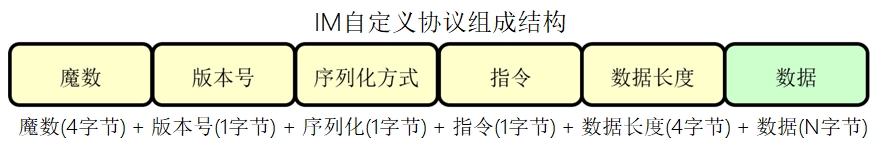

设计通信协议
为了实现定制化和扩展性，通常都需要定义一套私有协议，例如Dubbo框架
